DAD323
Back to: Automatic
Disco
Φ150 mm
Single spindle
Diversified Processes
The DAD323 is a single-axis dicing saw with a 2.0 kW high-torque spindle, compatible with workpieces as large as 6 x 6 inches. Adopting the Y-axis scale specification (optional) allows for high-precision index control and processing of difficult-to-process materials, including glass and ceramics. In addition, DAD323 is a versatile model and can be equipped with a 1.8 kW high-rotation spindle (highest rotation speed: 60,000 min-1) as an option.
High productivity
Software operation speed and response speed are improved through adoption of a high-performance MCU. The axis speed is accelerated and throughput is improved by adopting servo motors for all three axes.
World’s smallest footprint*
DAD323 is a compact dicing saw with a width of only 490 mm, and greatly contributes to improvements in productivity per unit area when multiple units are lined up.
* Investigated internally
Ease of operation
- The auto-alignment function is included as a standard feature.
- Operation via a 15-inch monitor and a GUI (Graphical User Interface)
Large monitor for improved legibility and an increase in the amount of displayable information.
Installed with the same user-friendly operating system as the 3000 series (DAD322 compatibility mode is also supported)
*Product appearance, features, specifications, and other details may change due to technical modifications.
*Please read the standard specification sheet thoroughly before use.
Related Products
Back to Automatic
DAD3220
Dicing Saw for 6 × 6-inch Workpieces Designed for Compactness Φ150 mm Single spindle Compatible with 6 × 6-inch Workpiec…
DAD3230
Compact Dicing Saw for Φ6-inch Workpieces with Superior Expandability Φ150 mm Single spindle Compatible with 6 x 6-inch…

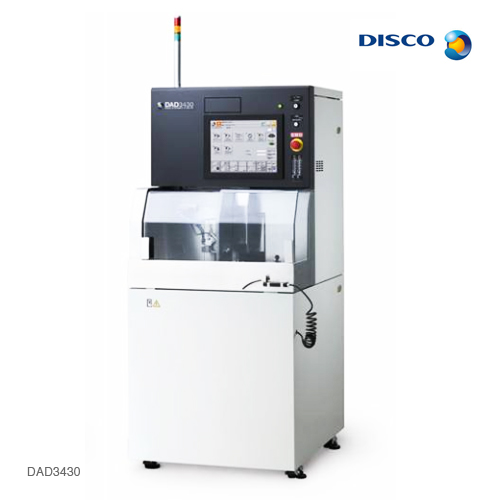

DAD3430
Φ6-inch Compact Dicing Saw Which Achieves High-Precision, High-Quality Processing Φ150 mm Single spindle Compatible with…

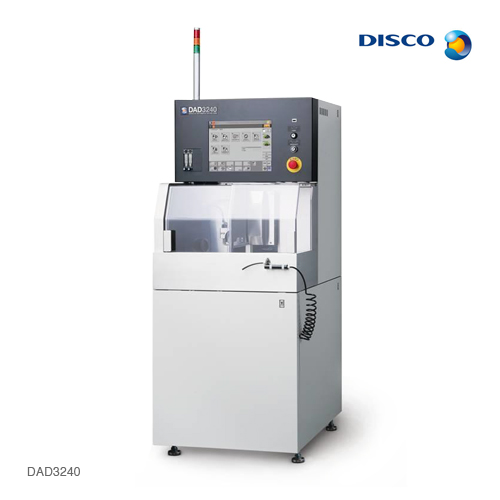

DAD3240
